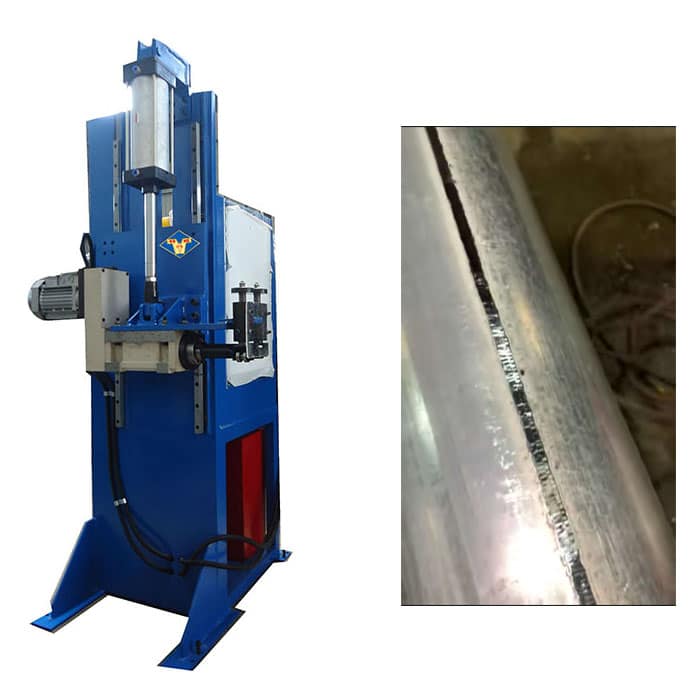

XFJ Light Pole Milling Machine

This light pole milling machine is used for milling pole of φ320X5.
Ⅰ.The main parameters of machine
1.Milling head power:2.2KW
2.Type of milling head: XT40
3.Cylinder model:type of 80
4.Suitable for steel pipe diameter: φ60-φ320
5.Wall thickness range: 2-5mm
6.Material:Q235

light pole milling machine

Ⅱ: light pole milling machine Main componentThe machine is composed of bed, base, milling head, pneumatic lifting body, sliding parts and electrical control.

The main features are as follows:1.The whole welding bed can withstand the cutting load and the overall machining accuracy;2.Precision linear slide rail drives well;3.Special custom high strength milling head a nice stiffness;4.The speed of milling head inverter is suitable for the thickness of different plates. Ⅲ:Main supply accessories1.Main motor: domestic quality variable frequency motor2.Bearing: Harbin bearing plant3.Cutter: domestic quality customized cutting tools.

Ⅲ:Main supply accessories
1.Main motor: domestic quality variable frequency motor
2.Bearing: Harbin bearing plant
3.Cutter: domestic quality customized cutting tools.
